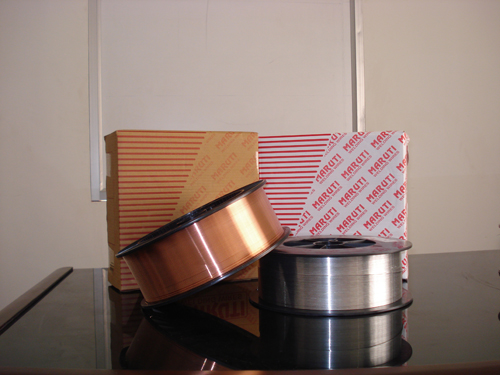

Maruti MIG Wires

Classifications :-         AWS/A-5, 18-93 : ER 70S-6
                                                            IS 6419-71 : Grade S 4

Characteristics :-

Copper Coated continous solid wire for CO2 Welding. Suitable For all Position Welding.Smooth flow with stable arc and minimum spatter are its special characteristics.Thin and uniform copper coating ensures good cunductivity useful for high speed feeding.

Gives Excellent radiographic quality welds.Suitable for welding of sheets metal, carbon steels and low alloy steels including structural steels with tensile strength upto 540 Nmm2.

Wire Composition

C	Mn	Si	S	P	Cu
0.06-0.15	1.40-1.85	0.80-1.15	0.035 Max	0.025 Max	0.50 Max

All Weld Mechanical Properties

( Under Co2 SHIELD AND NORMAL WELDING CONDITION )

YS (N/MM')	U.T.S (N/MM')	Elong (GL = 4D)	Charpy-V Impact Values At
400 Min.	480 Min.	22% Min.	-29 c> 27j

Welding Current  :-   (Dc+)
Shield Gas            :-    Co2

Packing Specification

Dimension	Weight	Packing Boxes
300mm x 52mm x 100mm	13.5 Kg Approx	supplied all plastic spools,sealed in polythin bags and packed shrink wrapped comugated boxes
